Features
130W high speed industrial gigabit Ethernet camera, camera identification precision 0.005, brightness control precision 1/800;
Auto-inspect product height by Infrared ray laser sensor, self-compensating all kinds of height difference, sprayed height will adjusted automatically by system, to keep the uniformity of the gum.
Flight sprayed model overcoming the position deviation caused by inertia at the situation of rapid spray and the shaking caused by accelerate and decelerate at the rapid running condition.
Parameters:
|

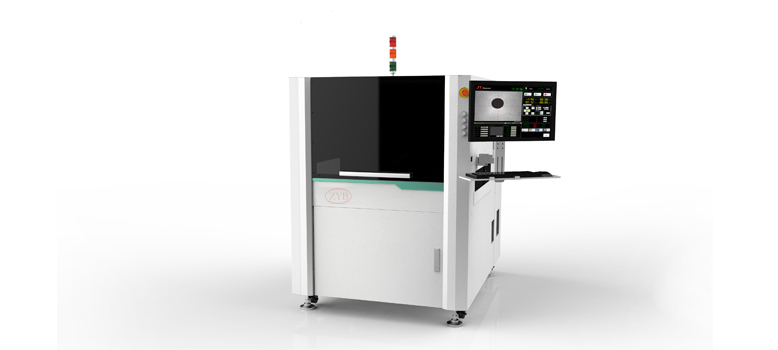

Model
|
HS-1100
|
|
Optical system
|
130W (150W if needed) high speed industrial gigabit Ethernet camera
|
|
Ring light source, analogue quality control, automatic adjustment of brightness and remembered
|
|
Mechanical precision
|
Belt 0.01mm/m Optical grating0.01mm/m
|
|
Route scope
|
X/Y650mm/450mm
|
|
Move speed
|
X,Y Axis,Max.1200mm/s
|
|
Repeat position accuracy
|
±0.01 mm
|
|
Production efficiency
|
Reach to 3.5w Spot/h
|
|
Frequency
|
270 Spot/S
|
|
Nozzle constant temperature system
|
Heating to 100℃
|
|
Dimension
|
L1400*W1200*H1500mm
|
The actual machine should be prevail if parameters changed.
