Features:
Four axis drive servo motor and linear module, accuracy reaches 0.02mm.
Width tuned by ball screw to keep the parallel of rails.
Individual drive of dual step motor and no glue protection structure on chains.
Sprayed route programmable, manual operate teaching, can convert CAD to DXF document.
One coating valve and two spay valve transferred flexibly as production request.
Single or dual working head is optional as needed and the accuracy of dual working head is adjustable.
Single tube gas inlet enhanced the performance of machine.
Parameters：
|

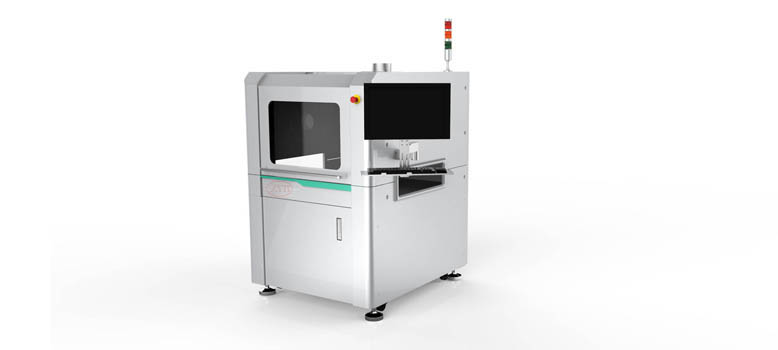

Model
|
CM-450T
|
|
Dimension
|
1060x1280x1615mm
|
|
Travel range
|
X/Y/Z/U轴 450/450/100+50/±180°Rotating
|
|
Conveyor speed
|
0-10m/min
|
|
Direction
|
R-L(L-R)
|
|
Rail width
|
50-450mm
|
|
Max. component height
|
100mm
|
|
Bottom space for PCB
|
Optional: 100mm or200mm
|
Theactual machine should be prevail if parameters changed.
