Features:
Soldering visual system: teaching programming system and real-time monitoring.
Figures can be loading without initial PCB data, programming easily and efficient.
Selective flux spraying and multi- algorithm combined, sprayed procedure controlled accurately, keep PCB clearance and save flux.
Parameters：
|

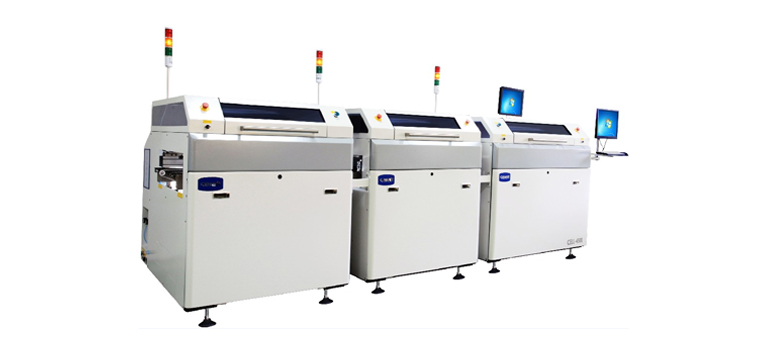

Model
|
CELL-450
|
|
Min. PCB size
|
L120mm W60mm
|
|
Max. PCB size
|
L550mm W450mm
|
|
PCB thickness
|
0.5~6mm
|
|
PCB weight
|
Max.5Kg
|
|
PCB top space
|
100mm
|
|
PCB bottom space
|
30mm
|
|
PCB edge clearance
|
4mm
|
|
Pot volume
|
8Kg
|
|
Min. nozzle size
|
￠4.5mm(choose according to the need)
|
|
N2 rate
|
0.5Mpa 20L/min
|
|
Dimension
|
L1300*W1400*H1200mm
|
The actual machine should be prevail if parameters changed.
