Features:

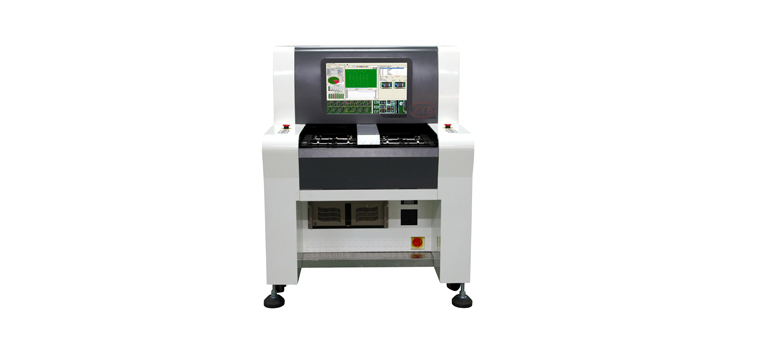

Optical Inspection Equipment with RGBW Four Color Light Source;
With the Function of Poor Distribution, DPPM Variation Analysis and Current Poor Point Information Checking;
Automatic Generation of Statistic Analysis and Data Report, Getting Craft Information at Real Time;
Two Different PCB Inspected at the Same Time, Flexible Supplying Two Different Production Lines;
Realizing Mutual Board Enter Testing at No Stop Situation, Saving the Time of Board Taking and putting, Production Efficiency Boosted Distinctly;
Via the Integration of Different Color Channel, Get Visualized and Convenient Programming, Have Higher Detection Rate and Lower, Stable Misinformation.
Parameters:
|
Model
|
Parameters
|
JTA-500D
|
JTA-500
|
|
PCB specification
|
PCB Size
|
Dual line, Double table 50x600mm~250x350mm
|
Middle-sizes M50×60~415×350mm
Specific can be optional
|
|
PCB thickness
|
0.5mm~5.0mm
|
|
PCB component height
|
Top:35mm;Bottom: 110mm
|
Top:28/70mm;Bottom: 40/110mm
|
|
PCB warping extent
|
Less than 3mm is acceptable。
|
|
Optical Parameter
|
Resolution
|
Standard:28 um/Pixel，Option:20um/Pixel
|
Standard:20 um/Pixel，Option:28um/Pixel
|
|
FOV
|
44*33mm
|
32*24mm
|
|
Speed
|
0.25 sec/FOV
|
|
Camera Spec
|
Digital HD Cameras, 2 Mega Pixel CCD Camera
|
|
optical lens
|
Japan Seiwa CCTV lens
|
Telemetric Optical Lens
|
|
Light source
|
RGB+W Four color ring light source
|
|
Hardware
|
Dimension
|
1105*1375*1445mm
|
893*1415*1253mm
|
The actual machine should be prevail if parameters changed.
