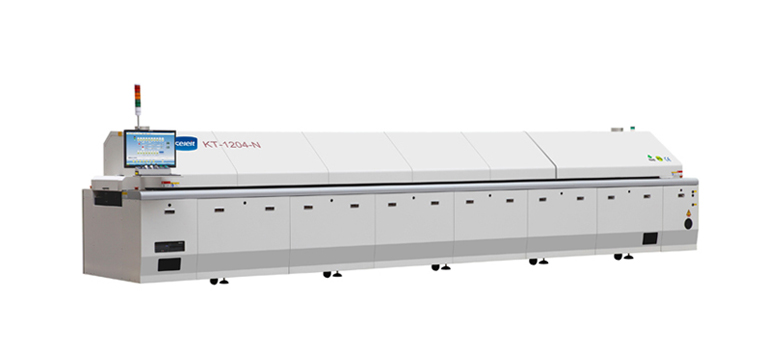

KT Series
Features：
High speed, high efficiency, conveyor speed can run 160cm/min. in normal soldering process.
Prevent deformation design as well as two-phase rail composition.
New two level flux reclaim system with multi-zones collecting.
Whole tunnel nitrogen protection and oxygen concentration monitoring, the 02 ppm can be checked automatically or manually.
New enhanced 4 cooling zones which are able to cool down the PCBA to 50℃ even in large volume lead free process.
Parameters：
|
Model
|
KTD-0804/KTD-0804-N
|
KTD-1004/KTD-1004-N
|
KTD-1204/KTD-1204-N
|
|
GENERAL
|
|
|
Outside Dimension
|
5900X1725X1630mm
|
6622X1725X1630mm
|
7313X1725X1630mm
|
|
Standard Color
|
Computer Grey
|
Computer Grey
|
Computer Grey
|
|
Weight
|
Approx.3150KG/3300KG
|
Approx.3650KG/3800KG
|
Approx.4150KG/4300KG
|
|
Electric Supply Required
|
3 Phase,380V 50/60HZ(Optional:3 Phase,220V 50/60HZ)
|
|
Electric Power
|
71KW/74KW
|
89KW/92KW
|
101KW/105KW
|
|
Power For Warm Up
|
33KW/35KW
|
35KW/37KW
|
40KW/42KW
|
|
Power Consumption
|
9KW/9.5KW
|
10KW/11KW
|
11.5KW/13KW
|
|
Components Clearance
|
PCB Top:30mm Bottom:25mm
|
|
Model
|
KTS-0804/KTS-0804-N
|
KTS-1004/KTS-1004-N
|
KTS-1204/KTS-1204-N
|
|
GENERAL
|
|
|
Outside Dimension
|
5900X1495X1630mm
|
6622X1495X1630mm
|
7313X1495X1630mm
|
|
Standard Color
|
Computer Grey
|
Computer Grey
|
Computer Grey
|
|
Weight
|
Approx.2800KG/2950KG
|
Approx.3250KG/3400KG
|
Approx.3700KG/3850KG
|
|
Electric Supply Required
|
3 Phase,380V 50/60HZ(Optional:3 Phase,220V 50/60HZ)
|
|
Electrical Power
|
65KW/69KW
|
81KW/85KW
|
93KW/97KW
|
|
Power For Warm Up
|
30KW/32KW
|
32KW/34KW
|
37KW/39KW
|
|
Power Consumption
|
7.5KW/8.5KW
|
8.5KW/9.5KW
|
10.5KW/11.5KW
|
|
Components Clearance
|
PCB Top:30mm Bottom:25mm
|
|
Model
|
KTS-0804L/KTS-0804L-N
|
KTS-1004L/KTS-1004L-N
|
KTS-1204L/KTS-1204L-N
|
|
GENERAL
|
|
|
Outside Dimension
|
5900X1725X1630mm
|
6622X1725X1630mm
|
7313X1725X1630mm
|
|
Standard Color
|
Computer Grey
|
Computer Grey
|
Computer Grey
|
|
Weight
|
Approx.3100KG/3250KG
|
Approx.3600KG/3750KG
|
Approx.4100KG/4250KG
|
|
Electric Supply Required
|
3 Phase,380V Phase,220V 50/60H (Optional:3 50/60HZ)
|
|
Electric Power
|
71KW/74KW
|
89KW/92KW
|
101KW/105KW
|
|
Power For Warm Up
|
32KW/34KW
|
34KW/36KW
|
39KW/41KW
|
|
Power Consumption
|
8KW/9KW
|
9.5KW/10KW
|
11KW/12KW
|
|
Components Clearance
|
PCB Top:30mm Bottom:25mm
|
The actual machine should be prevail if parameters changed.
