Features
Totally meet various requirements for lead free processing.
Standard 8 couples of up and down zones with patented air management system to make hot air convection more efficient and faster thermal compensation.
PLC+PID closed loop control to achieve high precise temperature control and repeatable profiles.
Dual temperature sensors and dual safety control system shall cut off the power while abnormal case occurred.
The various alarm function: Over temperature alarm, abnormal speed alarm and Board dropped alarm.
Parameters:
|

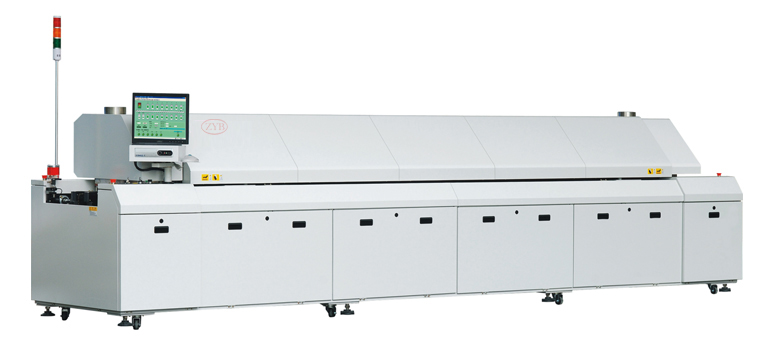

Model
|
ZYB-800
|
|
Dimension
|
5310X1353X1490
|
|
No. of Heating Zone
|
Top/Bottom 8
|
|
Length of heating zone
|
3121mm
|
|
No. of cooling zone
|
上2
|
|
Air exhaust requirement
|
10m3/minx2
|
|
Warming time
|
About.30 minute
|
|
Temperature control accuracy
|
±1.0℃
|
|
Temperature deviation on PCB
|
±1.5℃
|
|
PCB Max. width
|
400mm
|
|
Component Height
|
PCB Top/Bottom25mm
|
|
Conveyor direction
|
L→R (Option:R→L)
|
|
Conveyor type
|
Chain+ Mesh
|
|
Conveyor speed
|
300~2000mm/min
|
|
Cooling type
|
Forced air cooling
|
The actual machine should be prevail if parameters changed.
